What is NETMODE?
The NETMODE testbed is a Wi-Fi testbed belonging to the National Technical University of Athens (NTUA). It consists of 20 x86 compatible nodes positioned indoors in an office environment. 18 of these nodes consist of an alix3d2 board with two IEEE 802.11 a/b/g interfaces, one 100Mbit ethernet port, two USB interfaces and a 1GB flash card storage device. The other 2 nodes are more powerful, applying an Intel Atom CPU, a 250 GB hard drive, and providing two 802.11 a/b/g/n interfaces and one Gigabit Ethernet interface.

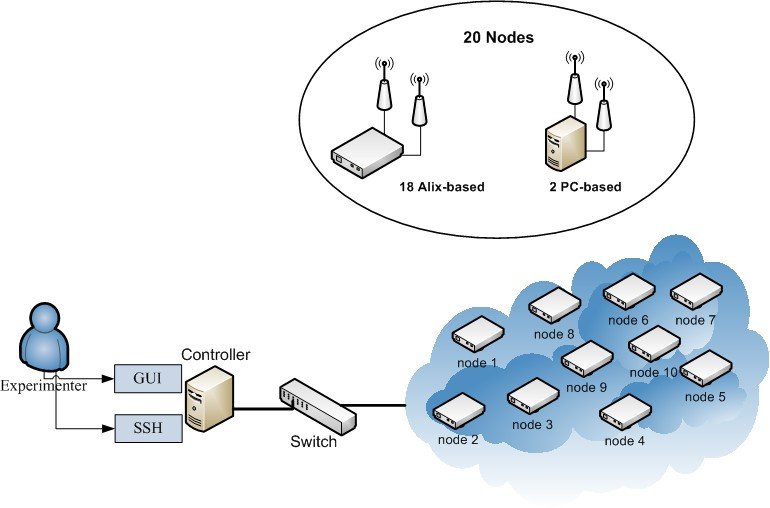

NETMODE hardware
Deployment
The nodes are scattered around the 3rd floor and the roof of the ECE building at the National Technical University of Athens.

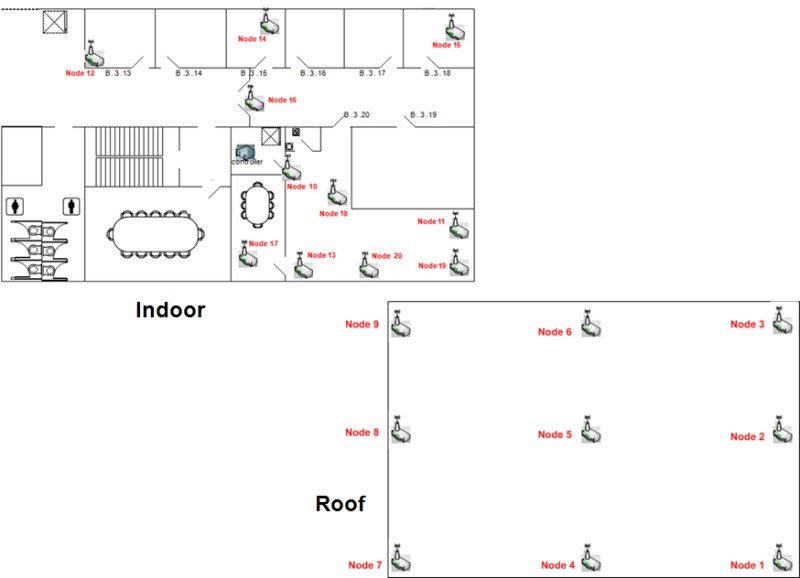

Deployment of NETMODE nodes
Properties
Compared to the summary figure presented before, the situation at the NETMODE testbed is characterized by the following properties:
- Collected is not supported
- The depicted resources are NETMODE-specific: 18 of these nodes consist of an alix3d2 board with two IEEE 802.11 a/b/g interfaces, one 100Mbit ethernet port, two USB interfaces and a 1GB flash card storage device. The other 2 nodes are more powerful, applying an Intel Atom CPU, a 250 GB hard drive, and providing two 802.11 a/b/g/n interfaces and one Gigabit Ethernet interface

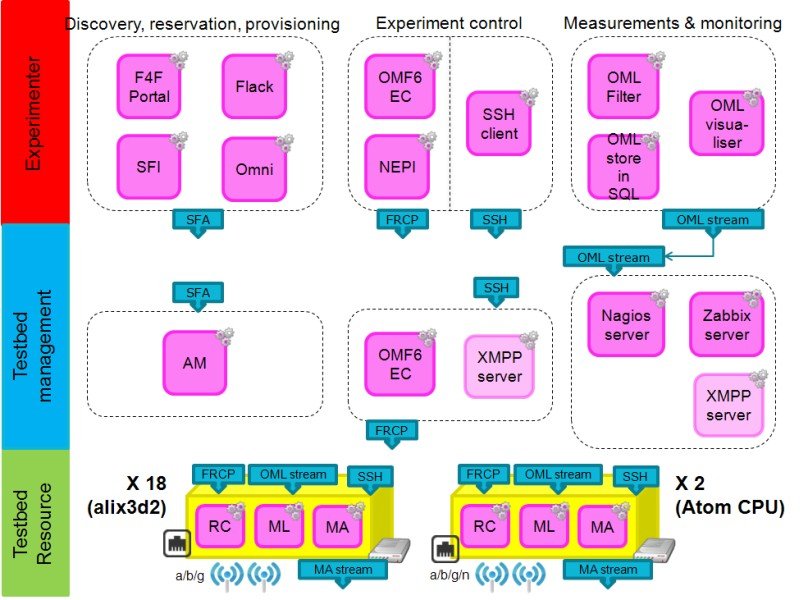

NETMODE properties
Contact
Email: Dimitris Dechouniotis ddechou@netmode.ntua.gr
More details can be found: www.netmode.ntua.gr
